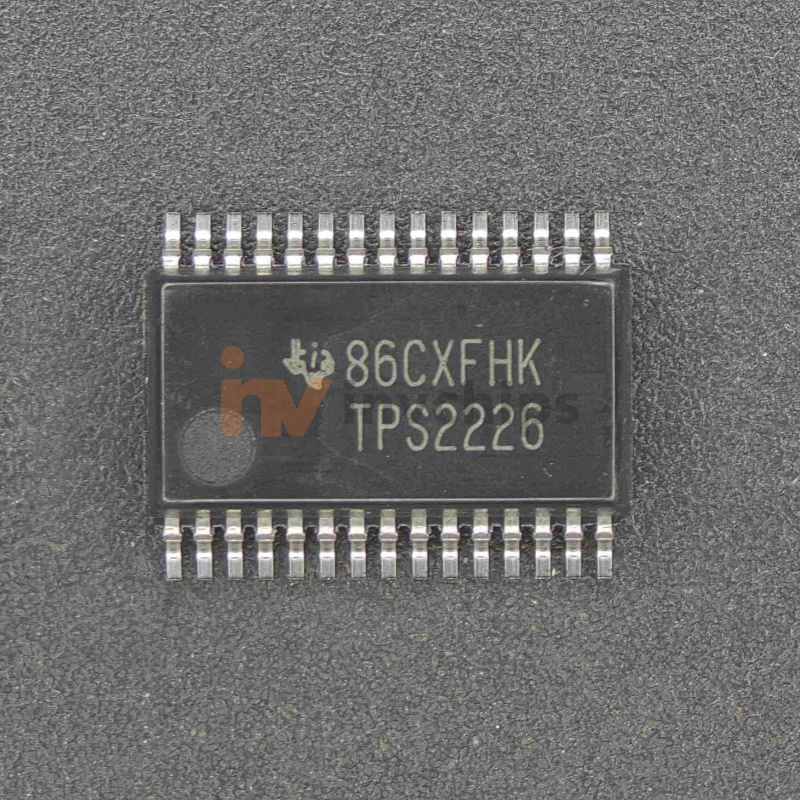

TPS2226DBR

IC PWR SWITCH 3:4 30SSOP

Original price was: $1.6900.Current price is: $1.6055.

Innovo Code#: N22003619
Brand:
Available Stock: 148

Quantity (pcs) Unit Price (USD)
1 - 99 $1.6055
100 - 999 $1.5210
1000 - 9999 $1.4365
10000 - 99999 $1.3520

Technical specifications

Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Product Status Active
Switch Type PCMCIA Switch
Number of Outputs 4
Ratio - Input:Output 3:4
Output Configuration High Side
Output Type -
Interface Serial
Voltage - Load 3.3V, 5V, 12V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 1A
Rds On (Typ) 95mOhm
Input Type -
Features Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 30-SSOP
Package / Case 30-SSOP (0.209", 5.30mm Width)
Base Product Number TPS2226
