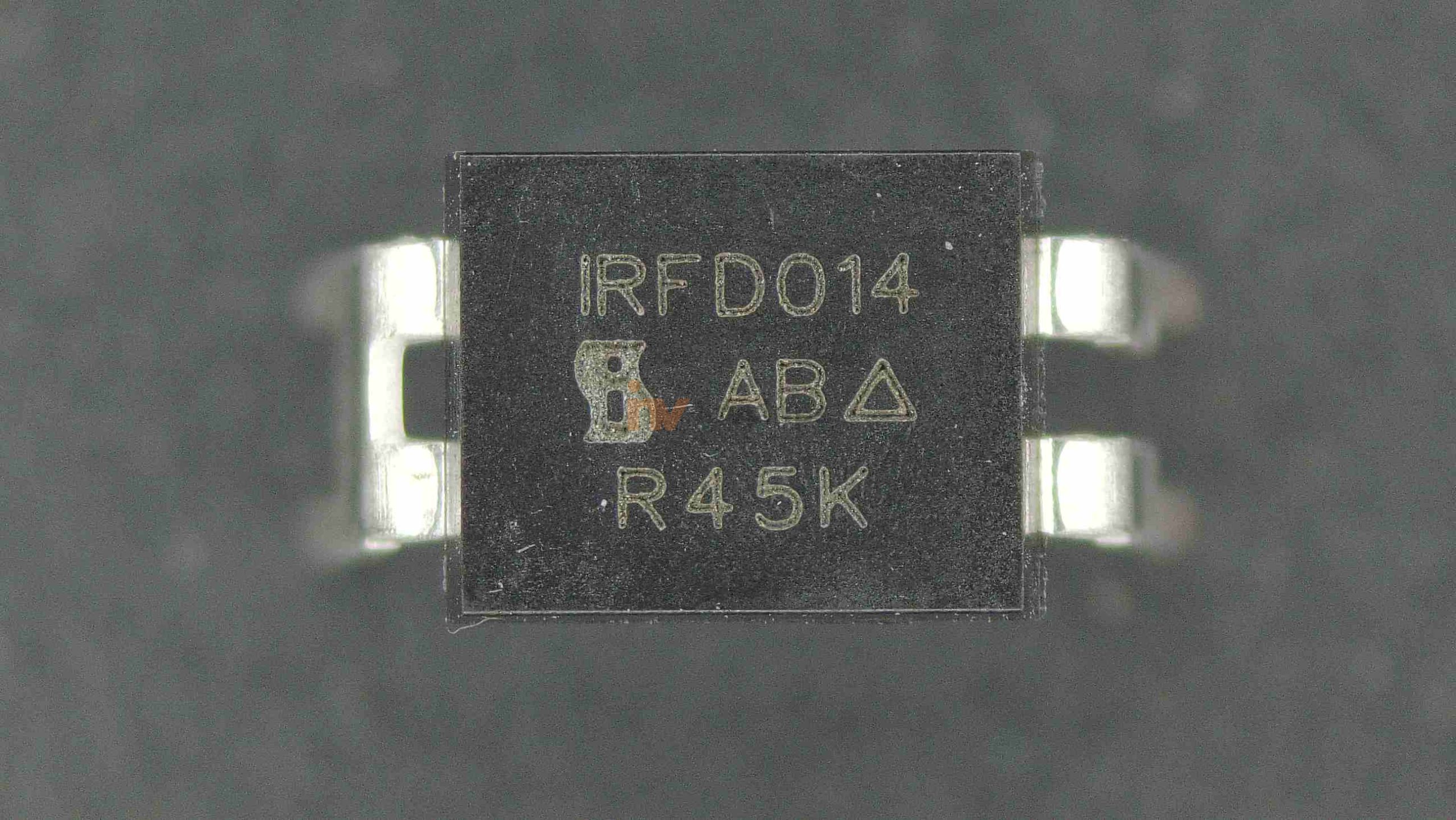

IRFD014PBF

MOSFET N-CH 60V 1.7A 4DI

Original price was: $0.9100.Current price is: $0.8645.

Innovo Code#: N22002380
Brand:
Available Stock: 70

Quantity (pcs) Unit Price (USD)
1 - 99 $0.8645
100 - 999 $0.8190
1000 - 9999 $0.7735
10000 - 99999 $0.7280

Technical specifications

Mfr Vishay Siliconix
Series -
Package Bulk
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 200mOhm @ 1A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 11 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 310 pF @ 25 V
FET Feature -
Power Dissipation (Max) 1.3W (Ta)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package 4-HVMDIP
Package / Case 4-DIP (0.300", 7.62mm)
Base Product Number IRFD014
