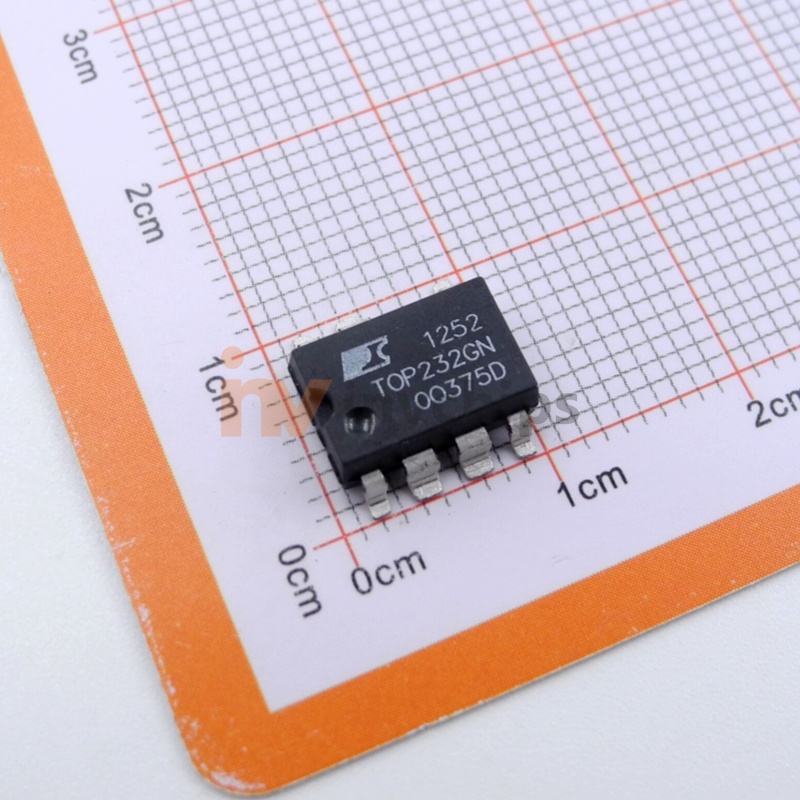

TOP232GN

IC OFFLINE SWITCH FLYBACK 8SMD

Original price was: $1.8000.Current price is: $1.7100.

Innovo Code#: N22003003
Brand:
Available Stock: 200

Quantity (pcs) Unit Price (USD)
1 - 99 $1.7100
100 - 999 $1.6200
1000 - 9999 $1.5300
10000 - 99999 $1.4400

Technical specifications

Mfr Power Integrations
Series TOPSwitch®-FX
Package Tube
Product Status Discontinued at allaboutcomponents.com
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Voltage - Supply (Vcc/Vdd) -
Duty Cycle 78%
Frequency - Switching 66kHz ~ 132kHz
Power (Watts) 15 W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Operating Temperature -40°C ~ 150°C (TJ)
Package / Case 8-SMD (7 Leads), Gull Wing
Supplier Device Package SMD-8B
Mounting Type Surface Mount
Base Product Number TOP232
