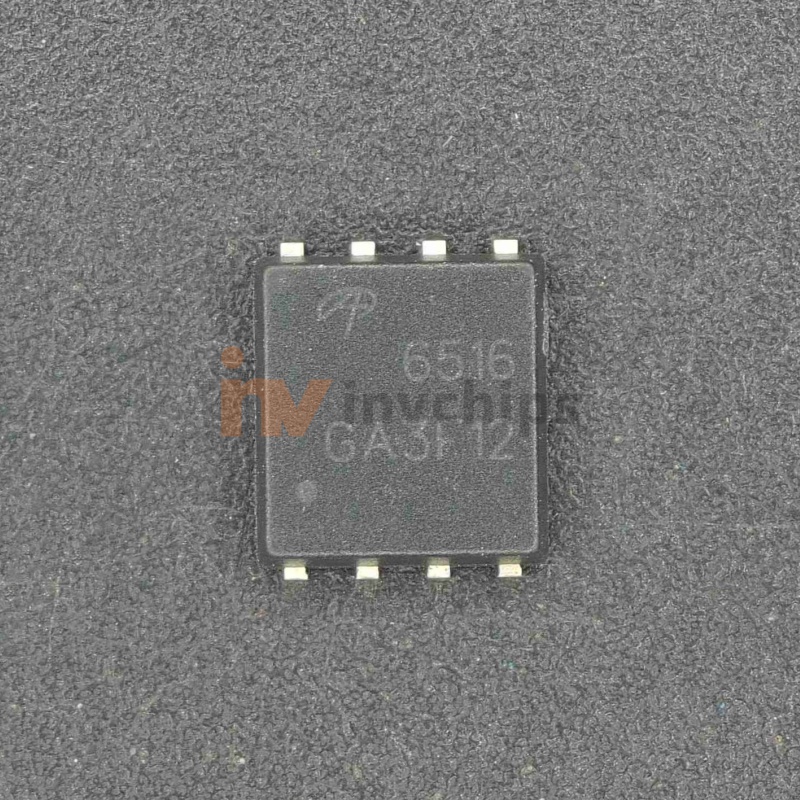

AON6516

MOSFET N-CH 30V 27A/32A 8DFN

Original price was: $0.1100.Current price is: $0.1045.

Innovo Code#: N22003951
Brand:
Available Stock: 1,088

Quantity (pcs) Unit Price (USD)
1 - 99 $0.1045
100 - 999 $0.0990
1000 - 9999 $0.0935
10000 - 99999 $0.0880

Technical specifications

Mfr Alpha & Omega Semiconductor Inc.
Series -
Package Tape & Reel (TR)
Product Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 27A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 33 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1229 pF @ 15 V
FET Feature -
Power Dissipation (Max) 6W (Ta), 25W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-DFN (5x6)
Package / Case 8-PowerSMD, Flat Leads
Base Product Number AON651
