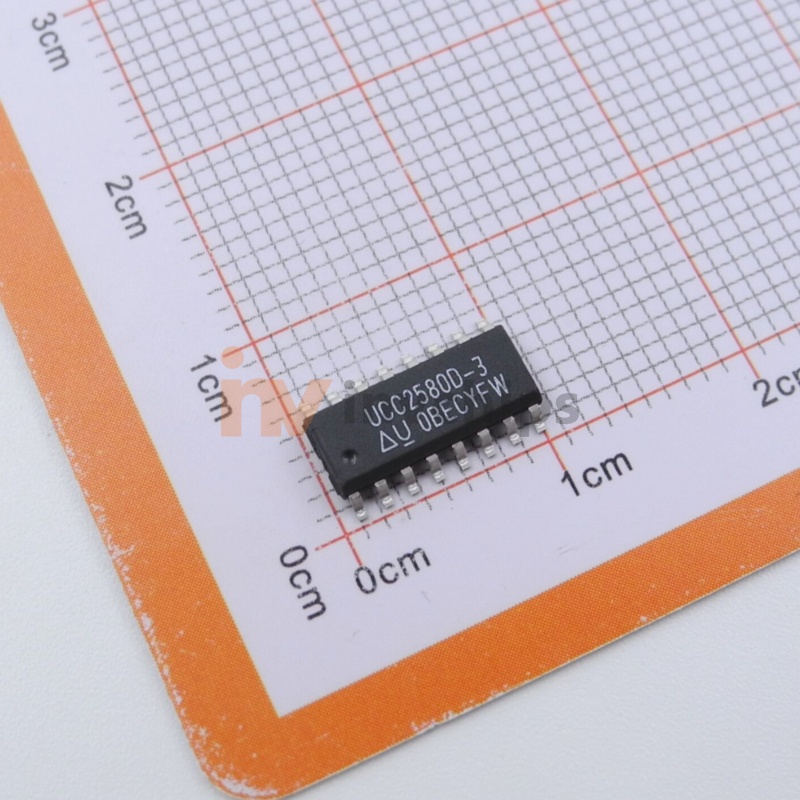

UCC2580DTR-3

IC REG CTRLR FWRD CONV 16SOIC

Original price was: $3.7500.Current price is: $3.5625.

Innovo Code#: N22003248
Brand:
Available Stock: 300

Quantity (pcs) Unit Price (USD)
1 - 99 $3.5625
100 - 999 $3.3750
1000 - 9999 $3.1875
10000 - 99999 $3.0000

Technical specifications

Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Product Status Active
Output Type Transistor Driver
Function Step-Up/Step-Down
Output Configuration Positive or Negative
Topology Forward Converter
Number of Outputs 2
Output Phases 1
Voltage - Supply (Vcc/Vdd) 8.5V ~ 16V
Frequency - Switching 400kHz
Duty Cycle (Max) 66%
Synchronous Rectifier No
Clock Sync No
Serial Interfaces -
Control Features Enable, Ramp, Soft Start
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Base Product Number UCC2580
