| Part Life Cycle Code | Obsolete |
| Part Package Code | SOIC |
| Package Description | Sop-8 |
| Pin Count | 8 |
| Manufacturer Package Code | 8LD, SOIC,JEDEC MS-012, .150″ NARROW BODY |
| ECCN Code | EAR99 |
| HTS Code | 8542.31.00.01 |
| Additional Feature | Output Voltage May Be Set To Any Value Between 2.495v And 36v With Two External Resistors |
| Analog IC – Other Type | Two Terminal Voltage Reference |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e3 |
| Length | 4.92 Mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -25 °C |
| Output Current-Max | 0.1 A |
| Output Voltage-Max | 2.52 V |
| Output Voltage-Min | 2.47 V |
| Output Voltage-Nom | 2.495 V |
| Package Body Material | Plastic/Epoxy |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | Rectangular |
| Package Style | Small Outline |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.8 Mm |
| Surface Mount | Yes |
| Technology | Bipolar |
| Temp Coef of Voltage-Max | 61.942 Ppm/°C |
| Temperature Grade | Other |
| Terminal Finish | Matte Tin |
| Terminal Form | Gull Wing |
| Terminal Pitch | 1.27 Mm |
| Terminal Position | Dual |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Trim/Adjustable Output | Yes |
| Width | 3.95 Mm |

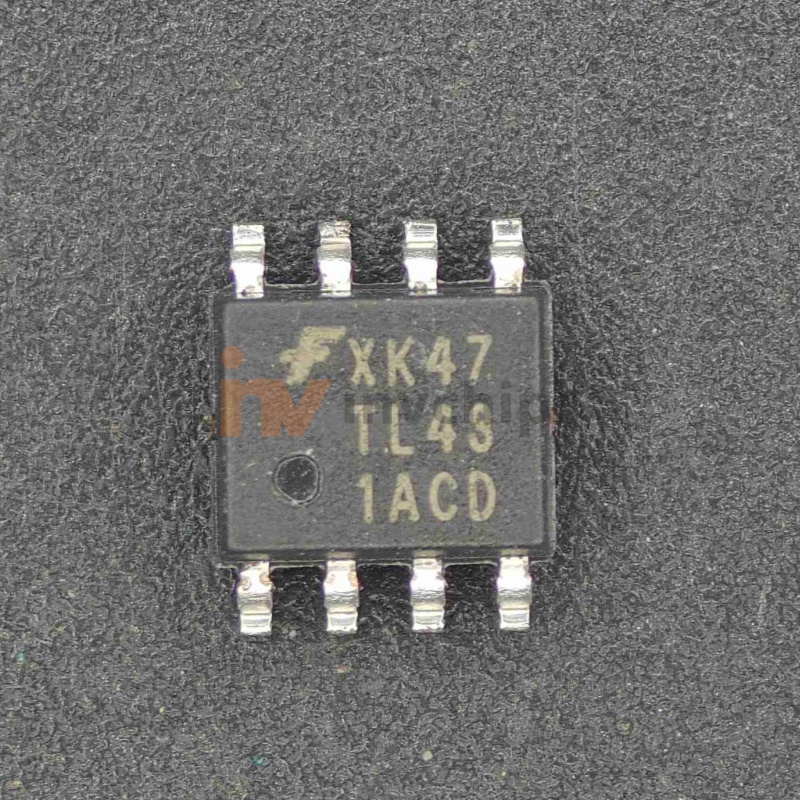

TL431ACD
Two Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO8
Original price was: $0.0800.$0.0760Current price is: $0.0760.
Innovo Code#: N22003780Brand: Fairchild Semiconductor Corporation
Available Stock: 7,430
| Quantity (pcs) | Unit Price (USD) |
| 1 - 99 | $0.0760 |
| 100 - 999 | $0.0720 |
| 1000 - 9999 | $0.0680 |
| 10000 - 99999 | $0.0640 |
-
