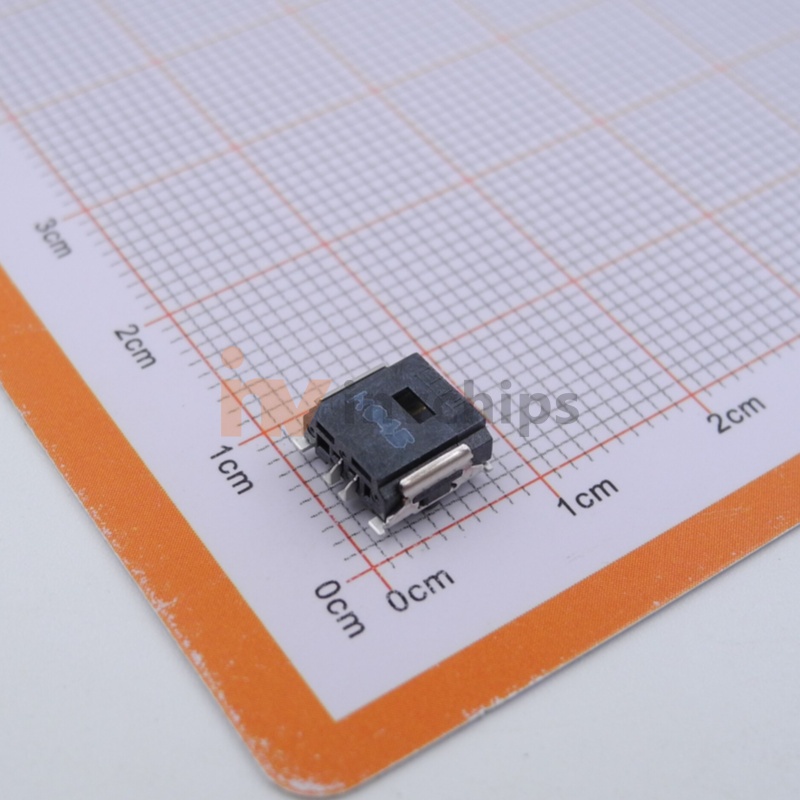

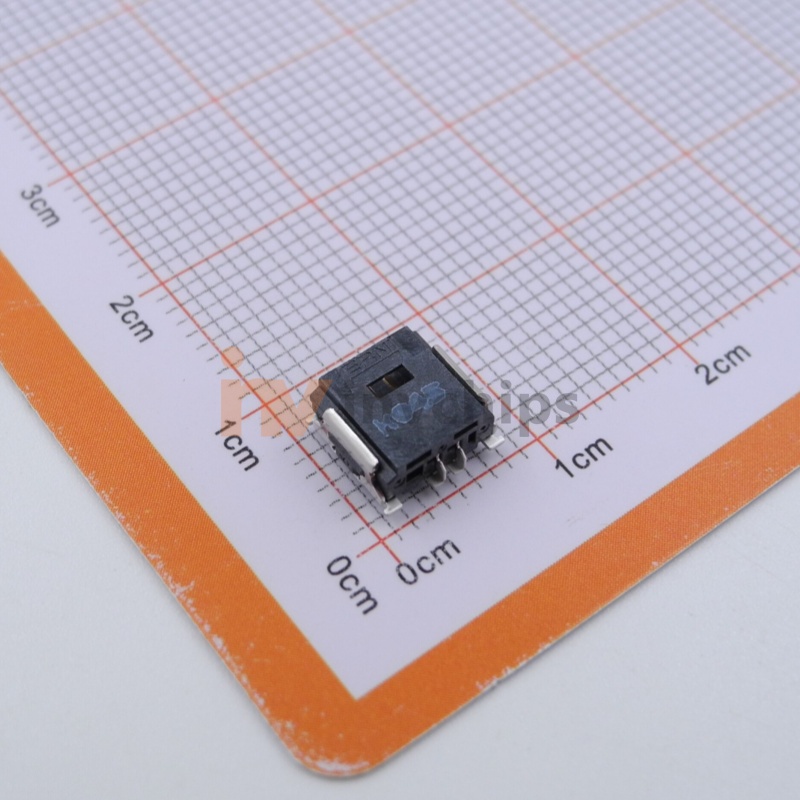

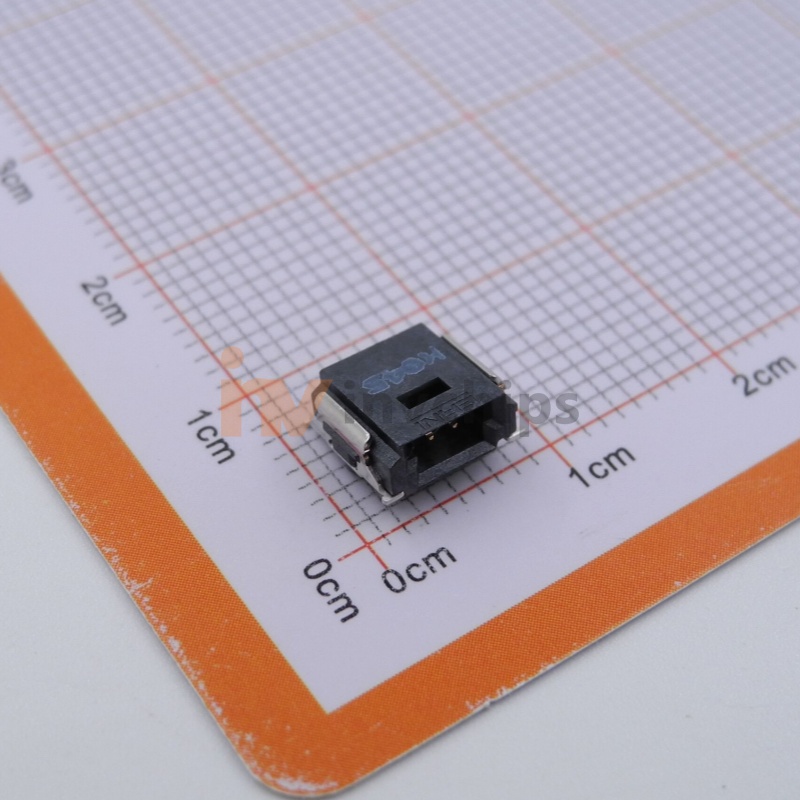

214011-E

Connector Header Surface Mount, Right Angle 2 position 1.27mm

Original price was: $0.8000.Current price is: $0.7600.

Innovo Code#: N22002276
Brand:
Available Stock: 5,050

Quantity (pcs) Unit Price (USD)
1 - 99 $0.7600
100 - 999 $0.7200
1000 - 9999 $0.6800
10000 - 99999 $0.6400

Technical specifications

Mfr TE Connectivity Erni
Series MiniBridge
Package Tape & Reel (TR)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 2
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.098" (2.50mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.117" (2.97mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Solder Retention
Operating Temperature -55°C ~ 150°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5.4A per Contact
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 157.5µin (4.00µm)
Applications -
Base Product Number -
