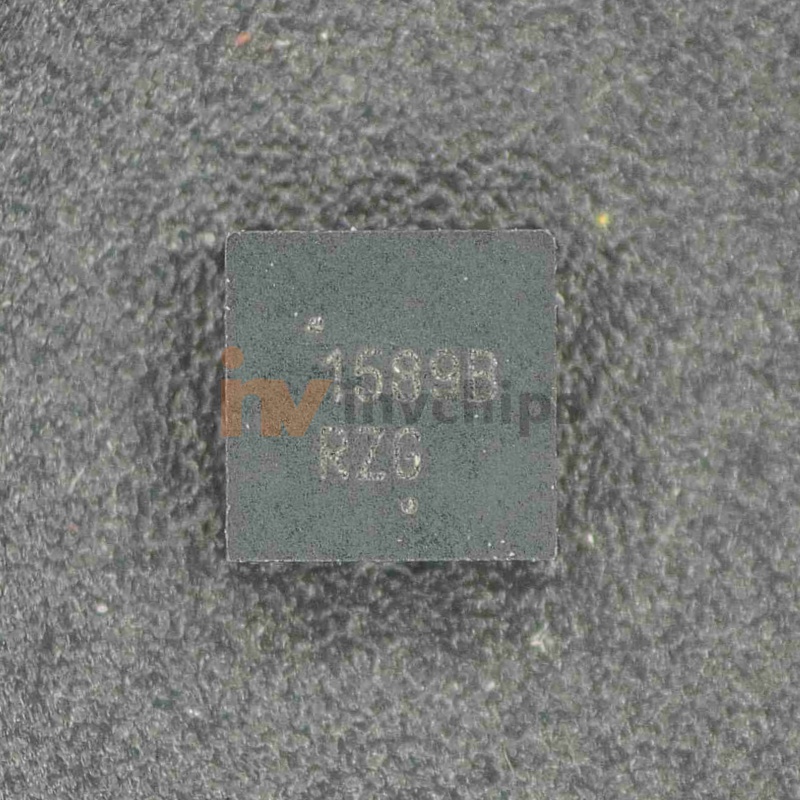

NCP1589BMNTWG

IC REG CTRLR BUCK 10DFN

Original price was: $2.1500.Current price is: $2.0425.

Innovo Code#: N22004171
Brand:
Available Stock: 2,670

Quantity (pcs) Unit Price (USD)
1 - 99 $2.0425
100 - 999 $1.9350
1000 - 9999 $1.8275
10000 - 99999 $1.7200

Technical specifications

Mfr onsemi
Series -
Package Tape & Reel (TR)
Product Status Obsolete
Output Type Transistor Driver
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 1
Output Phases 1
Voltage - Supply (Vcc/Vdd) 4.5V ~ 13.2V
Frequency - Switching 600kHz
Duty Cycle (Max) 75%
Synchronous Rectifier Yes
Clock Sync No
Serial Interfaces -
Control Features Enable, Power Good
Operating Temperature 0°C ~ 70°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 10-VFDFN Exposed Pad
Supplier Device Package 10-DFN (3x3)
Base Product Number NCP1589
