| Part Package Code | QFP |
| Package Description | Rohs Compliant, Plastic, Lqfp-32 |
| Pin Count | 32 |
| ECCN Code | 3A991.A.2 |
| HTS Code | 8542.31.00.01 |
| Has ADC | Yes |
| Address Bus Width | |
| Bit Size | 16 |
| CPU Family | 56800e |
| Clock Frequency-Max | 8 Mhz |
| DAC Channels | No |
| DMA Channels | No |
| External Data Bus Width | |
| JESD-30 Code | S-PQFP-G32 |
| JESD-609 Code | e3 |
| Length | 7 Mm |
| Moisture Sensitivity Level | 3 |
| Number of I/O Lines | 26 |
| Number of Terminals | 32 |
| On Chip Program ROM Width | 8 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min | -40 °C |
| PWM Channels | Yes |
| Package Body Material | Plastic/Epoxy |
| Package Code | LQFP |
| Package Equivalence Code | QFP32,.35SQ,32 |
| Package Shape | Square |
| Package Style | Flatpack, Low Profile |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| RAM (bytes) | 4096 |
| ROM (words) | 32768 |
| ROM Programmability | Flash |
| Seated Height-Max | 1.6 Mm |
| Speed | 32 Mhz |
| Supply Voltage-Max | 3.6 V |
| Supply Voltage-Min | 3 V |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Temperature Grade | Industrial |
| Terminal Finish | Matte Tin |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.8 Mm |
| Terminal Position | Quad |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Width | 7 Mm |
| uPs/uCs/Peripheral ICs Type | Microcontroller |

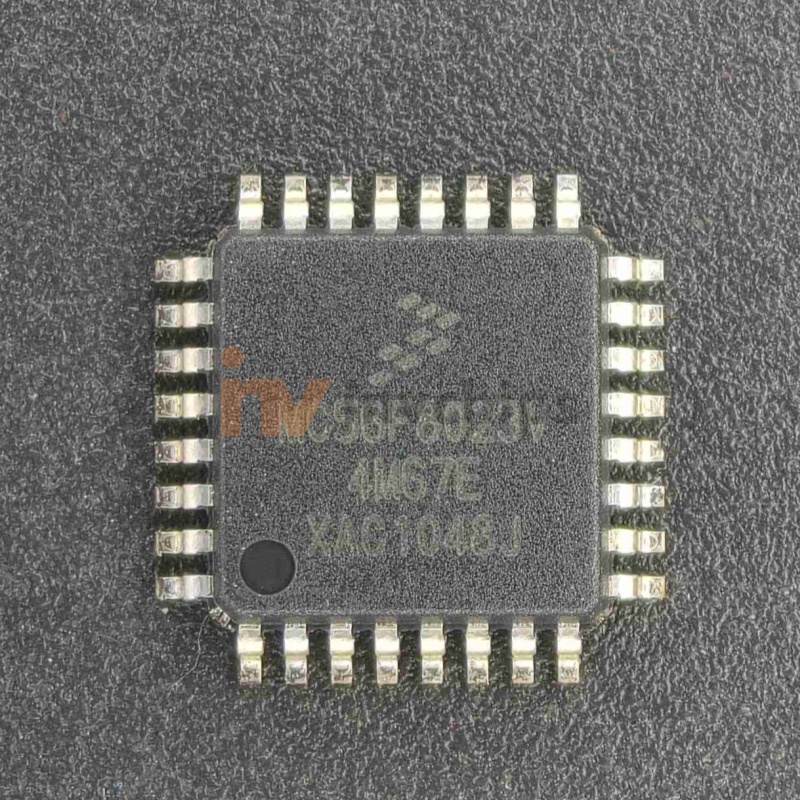

MC56F8023VLC
Microcontroller, 16-Bit, FLASH, 56800E CPU, 32MHz, CMOS, PQFP32
Original price was: $17.1900.$16.3305Current price is: $16.3305.
Innovo Code#: N22004833Brand: Freescale Semiconductor
Available Stock: 140
| Quantity (pcs) | Unit Price (USD) |
| 1 - 99 | $16.3305 |
| 100 - 999 | $15.4710 |
| 1000 - 9999 | $14.6115 |
| 10000 - 99999 | $13.7520 |
-
