| Part Life Cycle Code | Obsolete |
| Part Package Code | SSOP |
| Package Description | 5.30 Mm, Mo-150, Ssop-20 |
| Pin Count | 20 |
| ECCN Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| Differential Output | No |
| Driver Number of Bits | 2 |
| Input Characteristics | Schmitt Trigger |
| Interface IC Type | Line Transceiver |
| Interface Standard | Eia-232; Tia-232; V.24; V.28 |
| JESD-30 Code | R-PDSO-G20 |
| JESD-609 Code | e0 |
| Length | 7.2 Mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Out Swing-Min | 10 V |
| Output Low Current-Max | 0.0016 A |
| Package Body Material | Plastic/Epoxy |
| Package Code | SSOP |
| Package Equivalence Code | SSOP20,.3 |
| Package Shape | Rectangular |
| Package Style | Small Outline, Shrink Pitch |
| Qualification Status | Not Qualified |
| Receiver Number of Bits | 2 |
| Seated Height-Max | 1.99 Mm |
| Supply Current-Max | 1 Ma |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 3 V |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | Yes |
| Technology | Bicmos |
| Temperature Grade | Industrial |
| Terminal Finish | Tin Lead |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.65 Mm |
| Terminal Position | Dual |
| Width | 5.29 Mm |

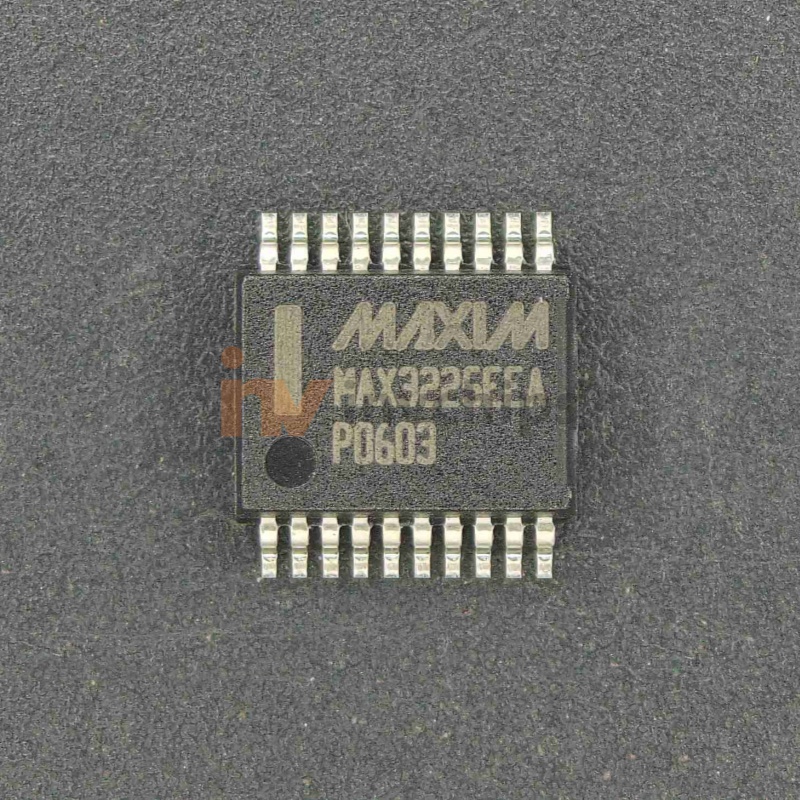

MAX3225EEAP-T
Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20
Original price was: $3.0000.$2.8500Current price is: $2.8500.
Innovo Code#: N22003744Brand: Maxim Integrated Products
Available Stock: 80
| Quantity (pcs) | Unit Price (USD) |
| 1 - 99 | $2.8500 |
| 100 - 999 | $2.7000 |
| 1000 - 9999 | $2.5500 |
| 10000 - 99999 | $2.4000 |
-
