| Package Description | 5 X 4 Mm, Lead Free, Plastic, Mo-229wjgd-2, Dfn-16 |
| Pin Count | 16 |
| Manufacturer Package Code | DHD |
| ECCN Code | EAR99 |
| HTS Code | 8542.39.00.60 |
| Analog IC – Other Type | Switching Regulator |
| Control Mode | Current-Mode |
| Control Technique | Pulse Width Modulation |
| Input Voltage-Max | 25 V |
| Input Voltage-Min | 3.6 V |
| Input Voltage-Nom | 5 V |
| JESD-30 Code | R-PDSO-N16 |
| JESD-609 Code | e3 |
| Length | 5 Mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | |
| Output Current-Max | 3.6 A |
| Package Body Material | Plastic/Epoxy |
| Package Code | HVSON |
| Package Equivalence Code | SOLCC16,.16,20 |
| Package Shape | Rectangular |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.8 Mm |
| Surface Mount | Yes |
| Switcher Configuration | Buck |
| Switching Frequency-Max | 650 Khz |
| Technology | Bipolar |
| Temperature Grade | Other |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | No Lead |
| Terminal Pitch | 0.5 Mm |
| Terminal Position | Dual |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 4 Mm |

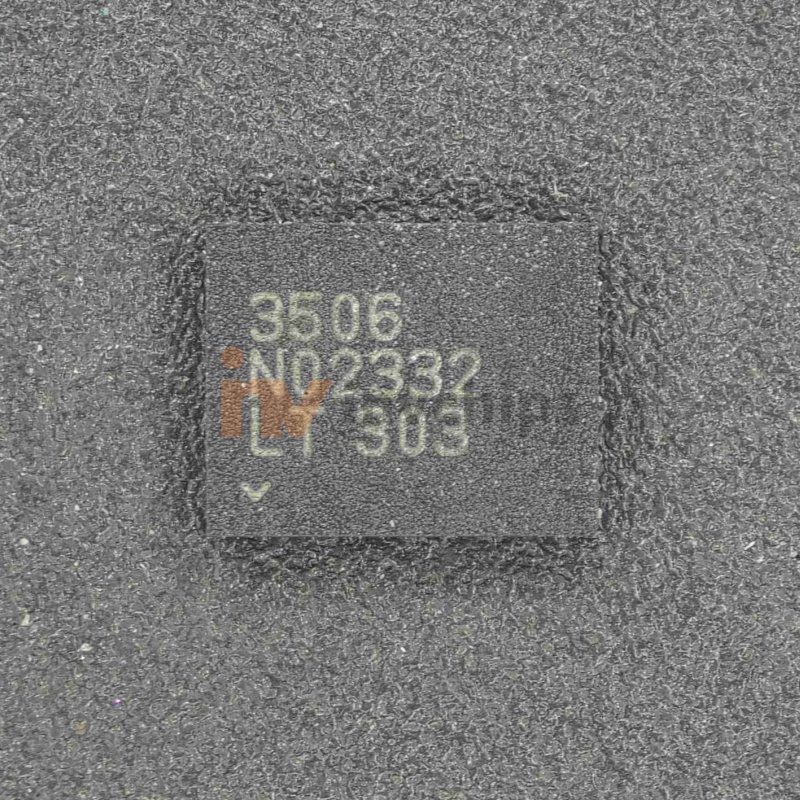

LT3506EDHD#TRPBF
Switching Regulator, Current-mode, 3.6A, 650kHz Switching Freq-Max, BIPolar, PDSO16
Original price was: $4.3000.$4.0850Current price is: $4.0850.
Innovo Code#: N22004260Brand: Linear Technology
Available Stock: 519
| Quantity (pcs) | Unit Price (USD) |
| 1 - 99 | $4.0850 |
| 100 - 999 | $3.8700 |
| 1000 - 9999 | $3.6550 |
| 10000 - 99999 | $3.4400 |
-
