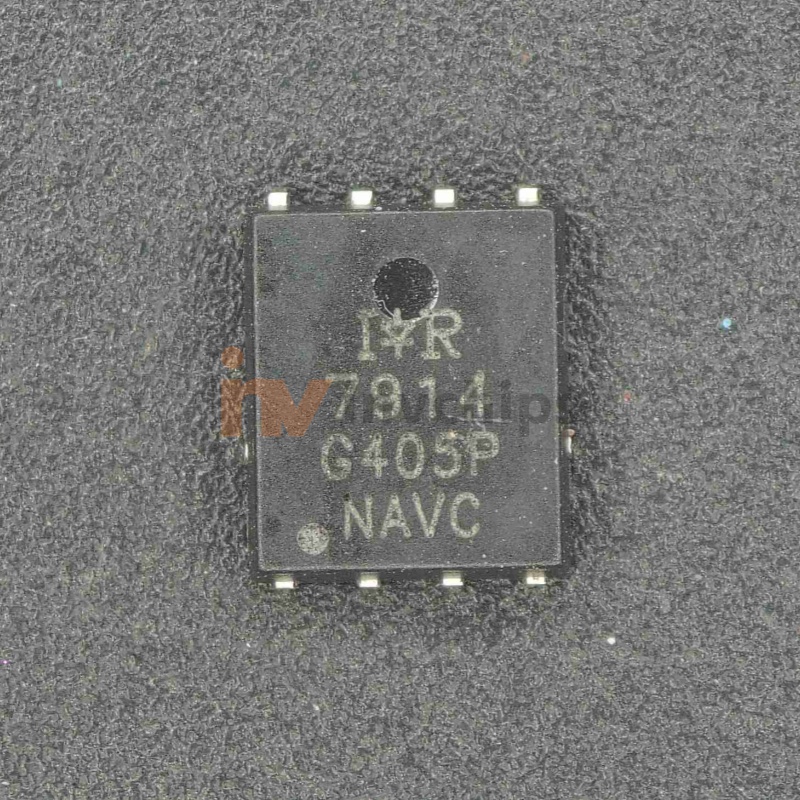

IRFH7914TRPBF

IRFH7914 – 12V-300V N-CHANNEL PO

Original price was: $0.5400.Current price is: $0.5130.

Innovo Code#: N22004143
Brand:
Available Stock: 2,346

Quantity (pcs) Unit Price (USD)
1 - 99 $0.5130
100 - 999 $0.4860
1000 - 9999 $0.4590
10000 - 99999 $0.4320

Technical specifications

Mfr International Rectifier
Series HEXFET®
Package Bulk
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 15A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 8.7mOhm @ 14A, 10V
Vgs(th) (Max) @ Id 2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs 12 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1160 pF @ 15 V
FET Feature -
Power Dissipation (Max) 3.1W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-PQFN (5x6)
Package / Case 8-PowerTDFN
