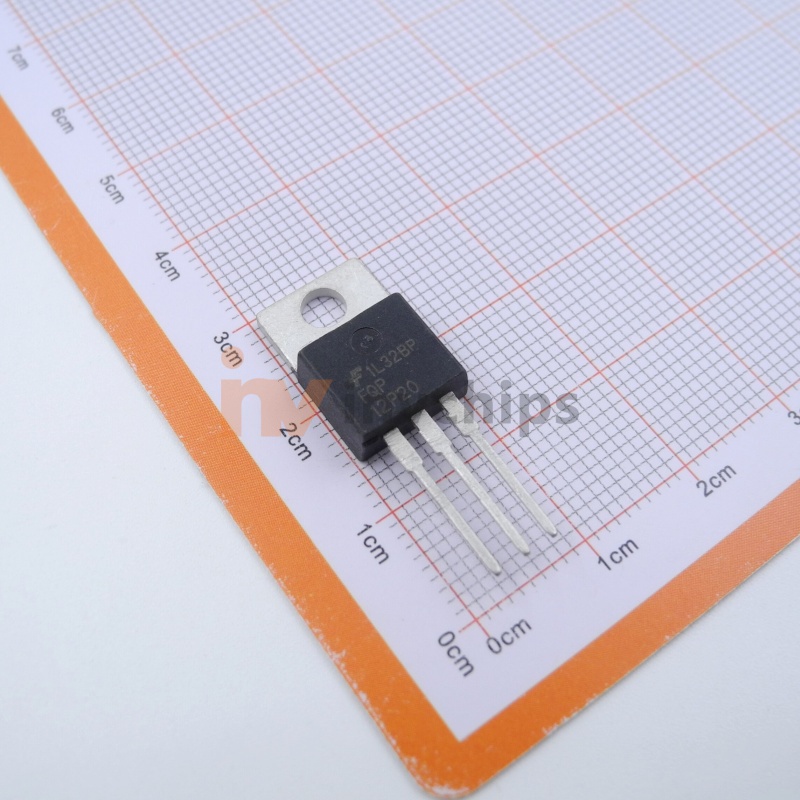

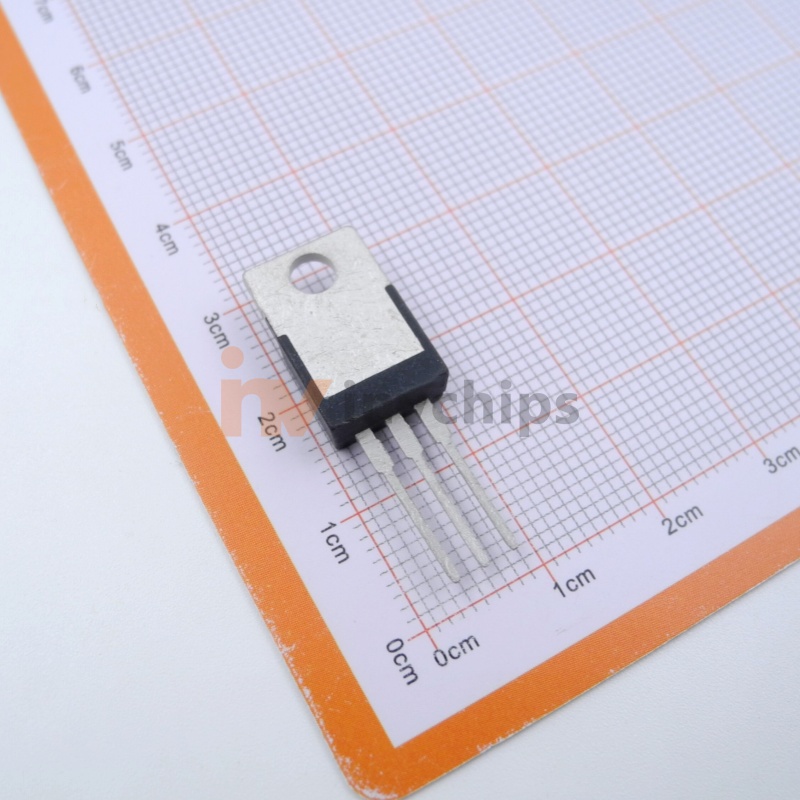

FQP12P20

MOSFET P-CH 200V 11.5A TO220-3

Original price was: $0.9000.Current price is: $0.8550.

Innovo Code#: N22003359
Brand:
Available Stock: 450

Quantity (pcs) Unit Price (USD)
1 - 99 $0.8550
100 - 999 $0.8100
1000 - 9999 $0.7650
10000 - 99999 $0.7200

Technical specifications

Mfr onsemi
Series QFET®
Package Tube
Product Status Obsolete
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 200 V
Current - Continuous Drain (Id) @ 25°C 11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 470mOhm @ 5.75A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 40 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 1200 pF @ 25 V
FET Feature -
Power Dissipation (Max) 120W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-220-3
Package / Case TO-220-3
Base Product Number FQP12
