Density: 64GB

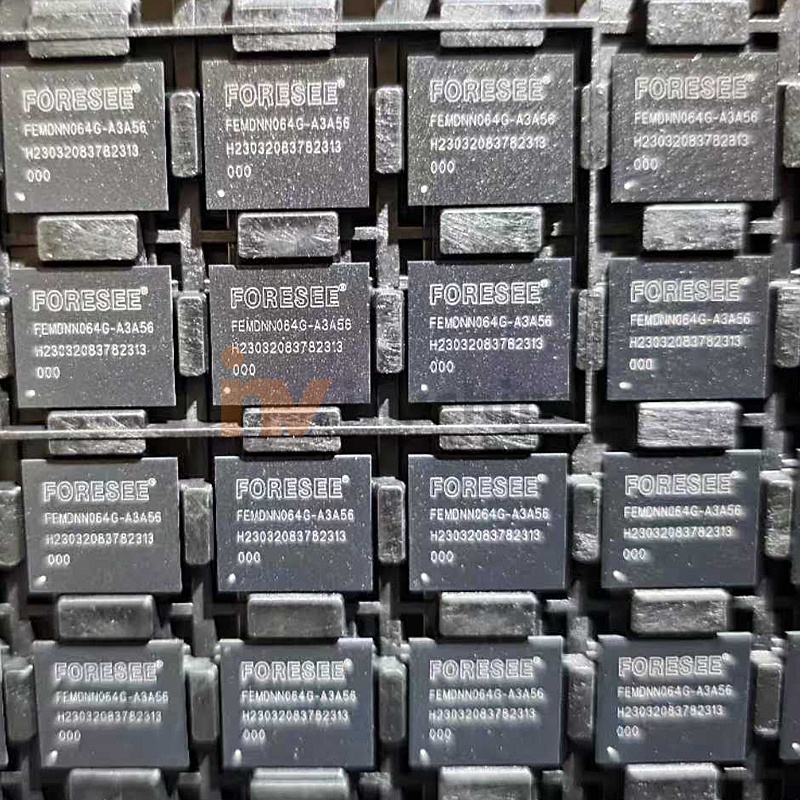

Part Number: FEMDNN064G-A3A56
Capacity(MB): 59000
Capacity(Bytes): 61,865,984,000
User Density(%): 90
Package Size(mm): 11.5x13x0.8
Package Type: 153FBGA
Features
eMMC5.1 specification compatibility
(Backward compatible to eMMC4.41/4.5/5.0)
Bus mode
– Data bus width: 1 bit (default), 4 bits, 8 bits
– Data transfer rate: up to 400MB/s (HS400)
– MMC I/F Clock frequency : 0~200MHz
Operating voltage range
– Vcc(NAND) : 2.7 – 3.6V
– Vccq(Controller) : 1.7 – 1.95V / 2.7 – 3.6V
Temperature
– Operation (-25℃ ~ +85℃)
– Storage without operation (-40℃ ~ +85℃)
Sudden-Power-Loss safeguard
Hardware ECC engine
Unique firmware backup mechanism
Global-wear-leveling
Supported features.
– HS400, HS200- Partitioning, RPMB
– Boot feature, boot partition
– HW Reset/SW Reset
– Discard, Trim, Erase, Sanitize
– Background operations, HPI
– Enhanced reliable write
– S.M.A.R.T. Health Report
– FFU- Sleep / awake
– Compliance with the RoHS Directive
