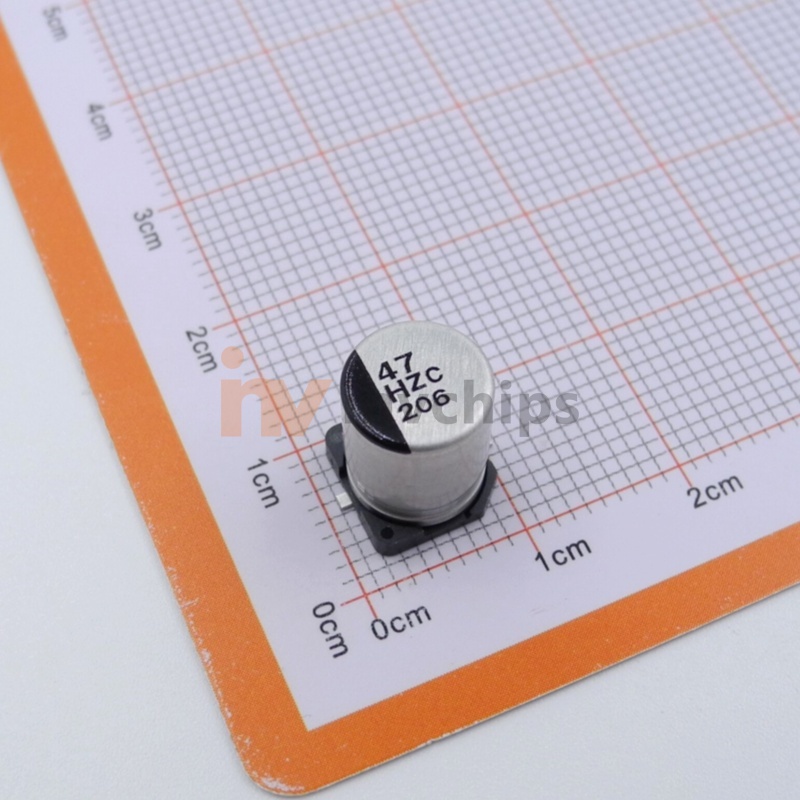

EEH-ZC1H470P

CAP ALUM HYBRID 47UF 20% 50V SMD

Original price was: $0.8100.Current price is: $0.7695.

Innovo Code#: N22003080
Brand:
Available Stock: 3,000

Quantity (pcs) Unit Price (USD)
1 - 99 $0.7695
100 - 999 $0.7290
1000 - 9999 $0.6885
10000 - 99999 $0.6480
Category:

Technical specifications

Mfr Panasonic Electronic Components
Series ZC
Package Tape & Reel (TR)
Product Status Active
Type Hybrid
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Operating Temperature -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 187.5 mA @ 100 Hz
Ripple Current @ High Frequency 1.25 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEH-ZC
