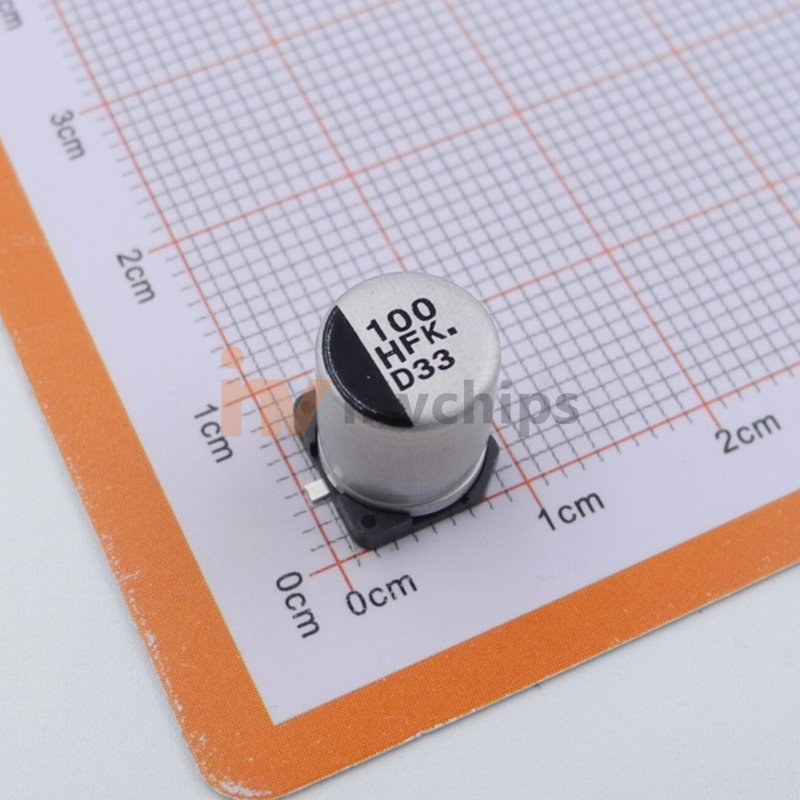

EEE-FK1H101GP

CAP ALUM 100UF 20% 50V SMD

Original price was: $0.3200.Current price is: $0.3040.

Innovo Code#: N22003085
Brand:
Available Stock: 3,000

Quantity (pcs) Unit Price (USD)
1 - 99 $0.3040
100 - 999 $0.2880
1000 - 9999 $0.2720
10000 - 99999 $0.2560
Category:

Technical specifications

Mfr Panasonic Electronic Components
Series FK
Package Tape & Reel (TR)
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 262.5 mA @ 120 Hz
Ripple Current @ High Frequency 350 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-FK
