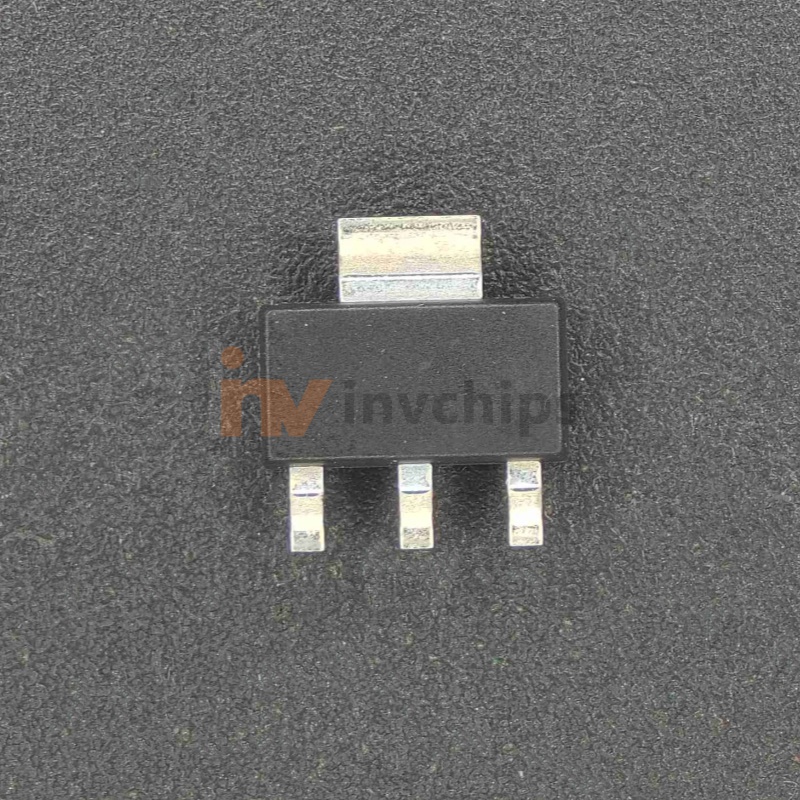

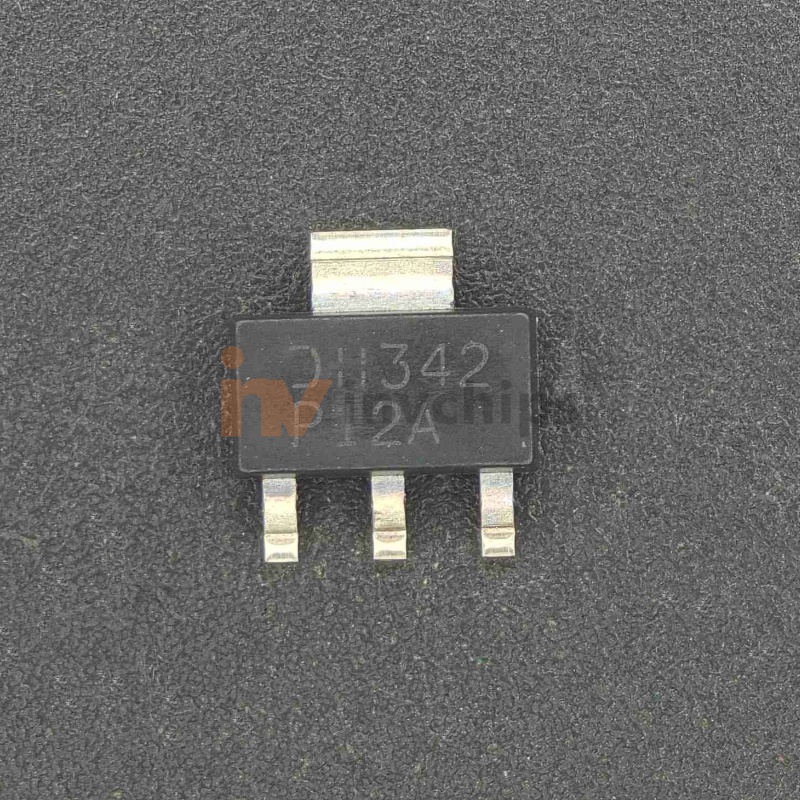

DCP69A-13

TRANS PNP 20V 1A SOT-223-3

Original price was: $0.0700.Current price is: $0.0665.

Innovo Code#: N22003529
Brand:
Available Stock: 2,719

Quantity (pcs) Unit Price (USD)
1 - 99 $0.0665
100 - 999 $0.0630
1000 - 9999 $0.0595
10000 - 99999 $0.0560

Technical specifications

Mfr Diodes Incorporated
Series -
Package Tape & Reel (TR)
Product Status Not For New Designs
Transistor Type PNP
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 20 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 85 @ 500mA, 1V
Power - Max 1 W
Frequency - Transition 250MHz
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223-3
Base Product Number DCP69A
