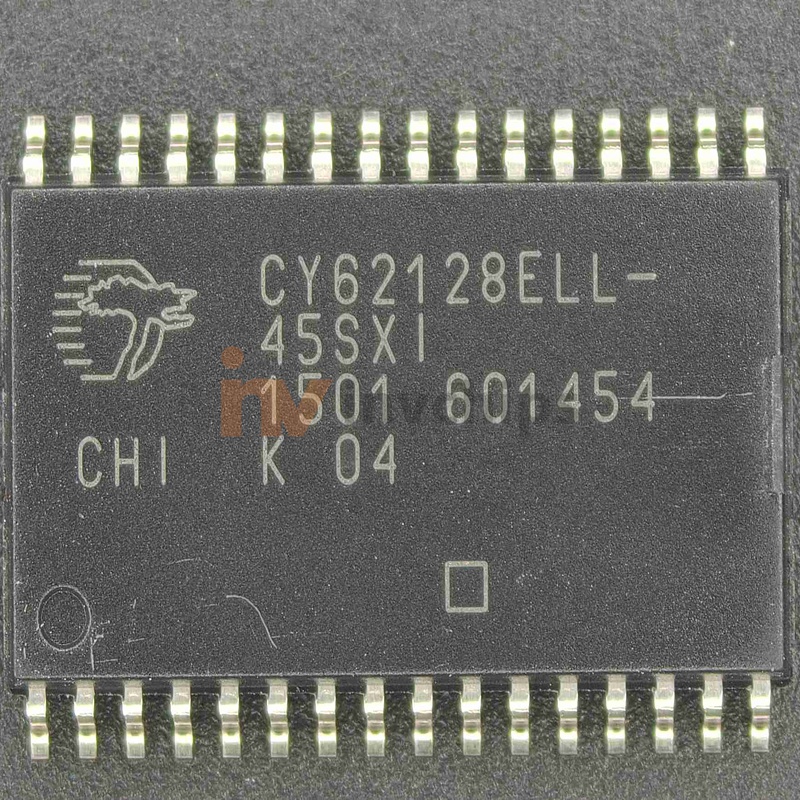

CY62128ELL-45SXIT

Standard SRAM, 128KX8, 45ns, CMOS, PDSO32

Original price was: $1.6100.Current price is: $1.5295.

Innovo Code#: N22004334
Brand:
Available Stock: 137

Quantity (pcs) Unit Price (USD)
1 - 99 $1.5295
100 - 999 $1.4490
1000 - 9999 $1.3685
10000 - 99999 $1.2880
Part Package Code SOIC
Package Description 0.450 Inch, Rohs Compliant, Plastic, Soic-32
Pin Count 32
ECCN Code EAR99
HTS Code 8542.32.00.41
Access Time-Max 45 Ns
I/O Type Common
JESD-30 Code R-PDSO-G32
JESD-609 Code e4
Length 20.4465 Mm
Memory Density 1048576 Bit
Memory IC Type Standard Sram
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Number of Words 131072 Words
Number of Words Code 128000
Operating Mode Asynchronous
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 128kx8
Output Characteristics 3-State
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape Rectangular
Package Style Small Outline
Parallel/Serial Parallel
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.997 Mm
Standby Current-Max 0.000004 A
Standby Voltage-Min 2 V
Supply Current-Max 0.016 Ma
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 20
Width 11.303 Mm
