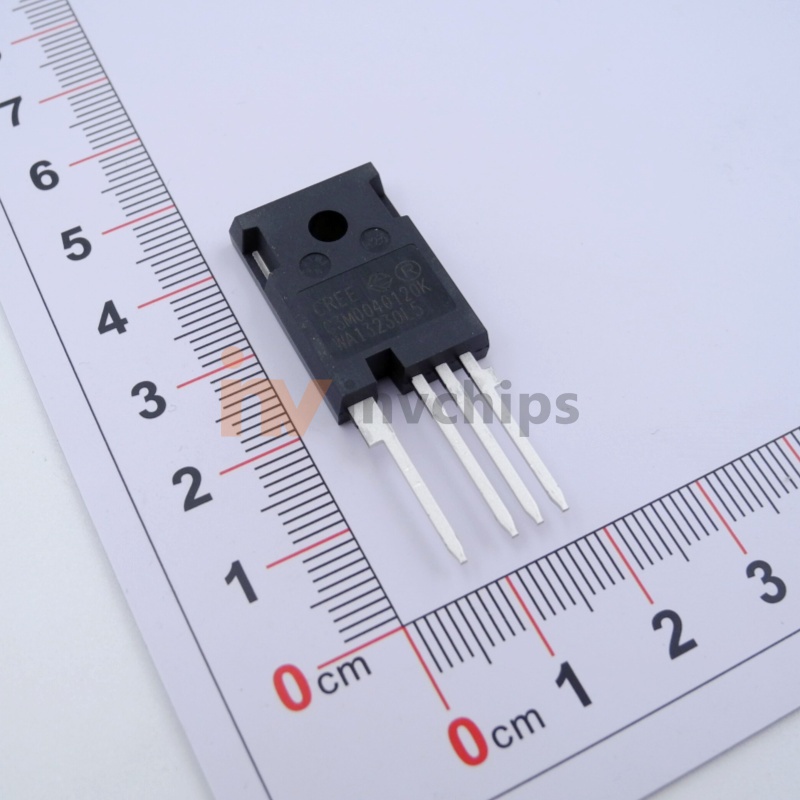

C3M0040120K

1200V 40MOHM SIC MOSFET

Original price was: $7.1300.Current price is: $6.7735.

Innovo Code#: N22002914
Brand:
Available Stock: 90

Quantity (pcs) Unit Price (USD)
1 - 99 $6.7735
100 - 999 $6.4170
1000 - 9999 $6.0605
10000 - 99999 $5.7040

Technical specifications

Mfr Wolfspeed, Inc.
Series C3M™
Package Tube
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 66A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Rds On (Max) @ Id, Vgs 53.5mOhm @ 33.3A, 15V
Vgs(th) (Max) @ Id 3.6V @ 9.2mA
Gate Charge (Qg) (Max) @ Vgs 99 nC @ 15 V
Vgs (Max) +15V, -4V
Input Capacitance (Ciss) (Max) @ Vds 2900 pF @ 1000 V
FET Feature -
Power Dissipation (Max) 326W (Tc)
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-247-4L
Package / Case TO-247-4
Base Product Number C3M0040120
