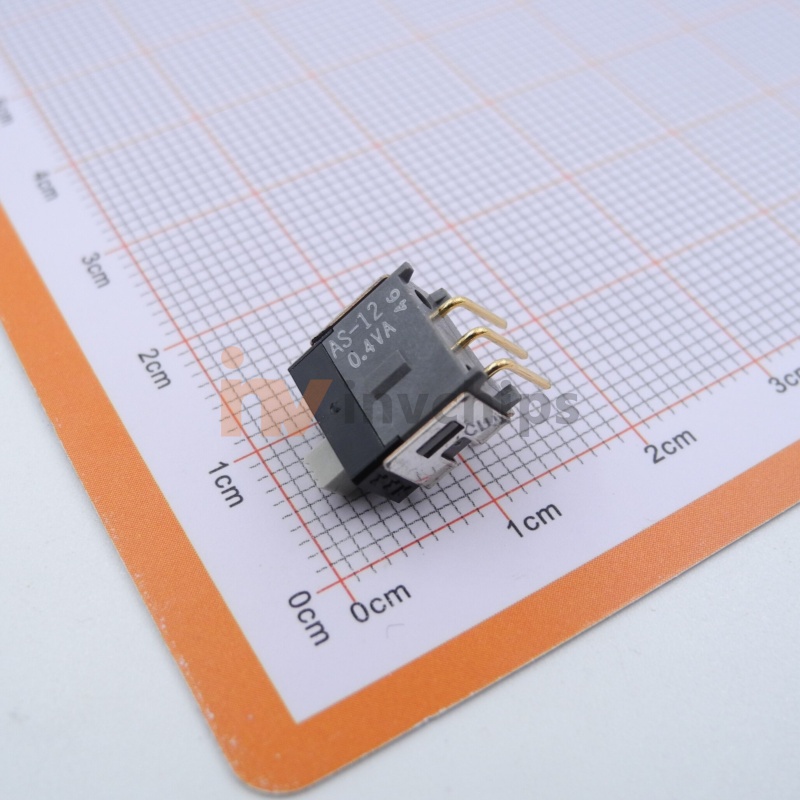

AS12AH

SWITCH SLIDE SPDT 0.4VA 28V

Original price was: $2.7000.Current price is: $2.5650.

Innovo Code#: N22002744
Brand:
Available Stock: 6,600

Quantity (pcs) Unit Price (USD)
1 - 99 $2.5650
100 - 999 $2.4300
1000 - 9999 $2.2950
10000 - 99999 $2.1600
Category:

Technical specifications

Mfr NKK Switches
Series AS
Package Tray
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 2.50mm
Contact Material Phosphor Bronze
Contact Finish Gold
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Operating Temperature -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon, Glass Filled
Switch Travel 2.50mm
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Operating Force 260gf
