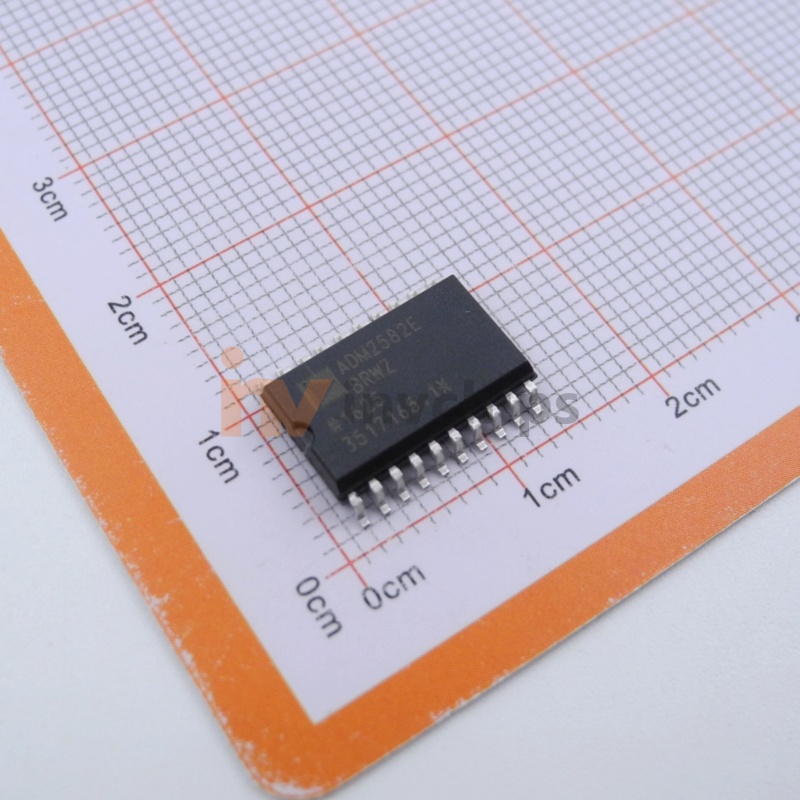

ADM2582EBRWZ-REEL7

DG ISO 2.5KV 2CH RS422 20-SOI

Original price was: $4.6800.Current price is: $4.4460.

Innovo Code#: N22002399
Brand:
Available Stock: 750

Quantity (pcs) Unit Price (USD)
1 - 99 $4.4460
100 - 999 $4.2120
1000 - 9999 $3.9780
10000 - 99999 $3.7440
Category:

Technical specifications

Mfr Analog Devices Inc.
Series IsoPower®, iCoupler®
Package Tape & Reel (TR)
Product Status Active
Technology Magnetic Coupling
Type RS422, RS485
Isolated Power Yes
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 16Mbps
Propagation Delay tpLH / tpHL (Max) -
Pulse Width Distortion (Max) -
Rise / Fall Time (Typ) 15ns, 15ns (Max)
Voltage - Supply 3.3V, 5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Base Product Number ADM2582
